HZALJ LED

Explosion proof low-profile LED area lighting ensures reliability in hazardous locations

$1,638.30

Return to Shop
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Area | Explosion Proof | Hazardous Location | Industrial
Classification
BAA Compliant | BABA Compliant | Class I, Division II | Class II, Division I | Class II, Division II | Class III | IEC/ATEX

The HZALJ LED area light offers a low-profile, explosion-proof design with interchangeable optics and multiple mounting options for hazardous locations. Its rugged construction and advanced features ensure efficient, reliable lighting in extreme environments.

Standard Features:

  • Low profile body, less than 5” high
  • Interchangeable optics with Type I, III, V and wide distribution options
  • Spring pressure connection terminal block
  • Field replaceable LED circuit boards and drivers with quick disconnects
  • Hinged mount for access to internal components
  • Optional trunnion mount with locking positions in 15 degree increments
  • Two (2) safety cable attachment points

Additional Features:

  • Optional emergency backup with switching capability and field replaceable battery
  • Pendant, ceiling, wall, trunnion and stanchion mounting options
  • Mates directly to select competitor mounts
  • Dimming option
  • Optional Type 316 stainless steel guard
  • Standard 10kV surge protection
  • 5-year warranty

Classifications:

  • Class I, Division 2, Groups A, B, C & D
  • Class II, Divisions 1 & 2, Groups E, F & G
  • Class III
  • Zone 2, Group IIA, IIB & IIC
  • Zone 21
  • ATEX/IEC/EX approvals
  • UL 1598A marine outside type
  • UL 1598 wet locations
  • UL 8750 LED safety
  • UL 844 hazardous locations
  • UL 924 emergency lighting
  • CSA C22.2 No. 250.0-08
  • CSA C22.2 No. 137-M1981 (R2104)
  • IP66
  • NEMA 4X
  • ABS type approved
  • Tested to LM79, LM80 standards
  • Build America, Buy America Act (BABA) compliant
  • Buy American Act (BAA) compliant
  • Simultaneous presence
  • Emergency battery backup
  • -40°C to 70°C ambient temperature
  • Factory sealed

Standard Materials:

  • Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gaskets: One-piece silicone
  • Lens: Tempered glass or polycarbonate
  • Hardware: Stainless Steel

Note: The HZALJ LED is rated for hazardous locations. For non-hazardous areas, see the IALJ LED

QuickShip Model Information

QuickShip Models

HZALJ10LUFGC
Style

CIDII Low Profile w/ Frosted Lens, Ceiling Mt
Watts

67
Operating Voltage

120V – 277 V 50/60 Hz
Total Lumens

9,634
Lumens per Watt

144
CRI

80.6
CCT

4,896
Ambient Temperature

-40°C < Tamb <70°C

Contact Us

Request More Information

Request More Information

To receive a quote or request additional information, please complete the form below and we will contact you as soon as possible. Fields marked with an asterisk (*) are required.


Product Details

View Dimensions

Lumens: 3,253-13,430

Approximate Shipping Weight: 13-21 lbs*

*Mounting and options may increase weight. See Specifications download for details.

Downloads

Specifications

Product Data Sheet

IES Files

Accessories

Installation Instructions

Emergency Option Instructions

EXHZALJ Installation Instructions

EXHZALJ Stanchion Mount Adapter Instructions

Follow RIG-A-LITE

Follow Us on Linkedin

Related Featured Story

You may also like:

IALJ LED

IALJ LED

Low-profile LED area lighting designed for marine, wet, and industrial environments

SXPJ LED

SXPJ LED

Explosion proof LED area lighting with field-replaceable components for challenging and hazardous locations

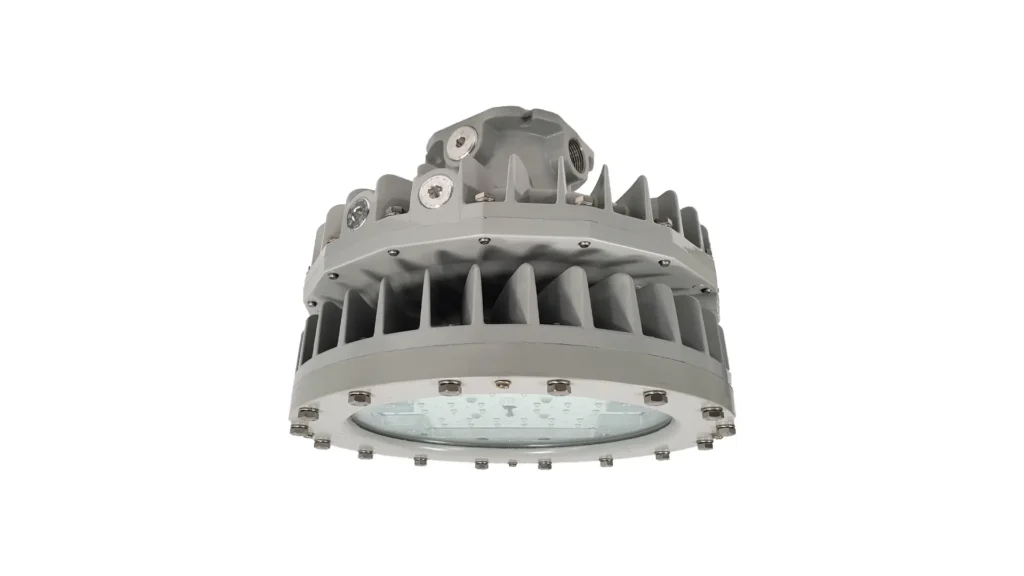

XHBF LED Explosion proof LED area lighting with emergency backup for harsh and hazardous locations
