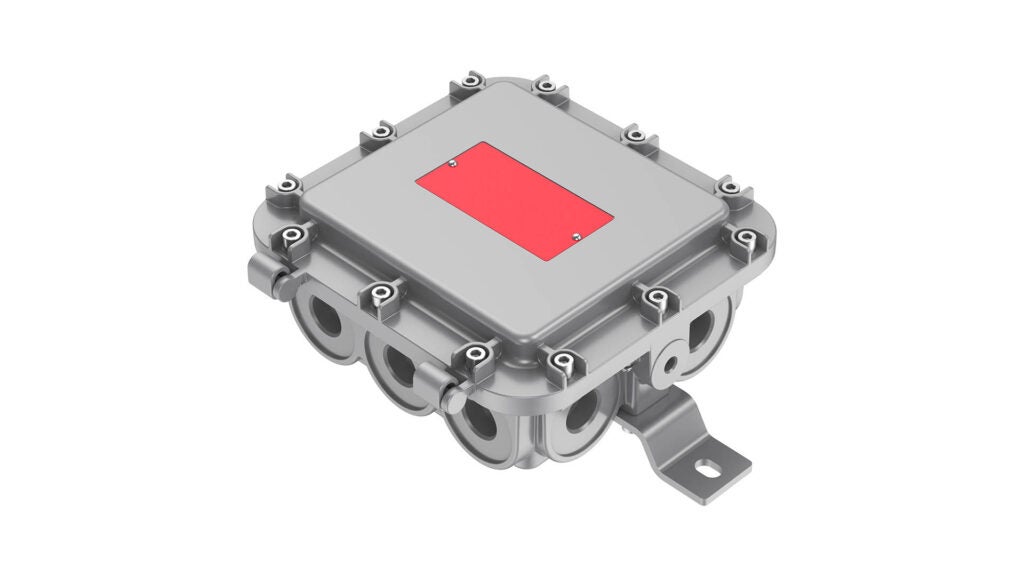

EXJB01
EX-Series explosion-proof ceiling mount junction box for LED lighting
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
Luminaire
EX-Series | Explosion Proof | Hazardous-Rated
The EX-Series EXJB01 explosion-proof ceiling mount junction box is engineered for hazardous environments where ATEX/IECEx certification is required, including the Middle East, North Africa, and Southeast Asia. Designed for extreme conditions, it offers certified explosion-proof, waterproof, dustproof, and corrosion-resistant protection in demanding applications.
Standard Features:
- Certified explosion-proof, waterproof, dustproof, anti-corrosion, and shock-resistant
- Aluminum alloy (less than 0.4% copper) body and powder coating, suitable for harsh and corrosive marine environments
- Threaded design to contain explosions and prevent flames, sparks, and hot gases from escaping
- Max 4 cable entries, support loop-in/loop-out connection 1/2″ NPT, 3/4″ NPT, 1″ NPT, M20 1.5, optional M25 1.5
- Max operating temperature range: -60°C to 75°C
- Corrosion category C4 (ISO 9223:2012)
- 5-year warranty
Classifications:
- Zone 1, Zone 2
- Zone 21, Zone 22
- IECEx approvals
• Ex db IIC T6 Gb
• Ex tb IIIC T80 C Db IP66 - ATEX approvals
• II 2G Ex db IIC T6 Gb
• II 2D Ex tb IIIC T80 C Db IP66 - IP66
- IK10
