ALI LED
Low-profile, energy-efficient LED area lighting for harsh-rated locations
ALIJ LED
Compact low-profile LED area lighting for harsh-rated locations
Industry
General Purpose | Marine
Type
LED
Luminaire
Area | Heavy Duty Harsh-Rated
Classification
The ALIJ LED area light is a low-profile, heavy duty, high-performance solution for harsh-rated locations, including marine environments. With wide distribution, field-replaceable components, and multiple mounting options, it delivers reliable and efficient illumination for tough conditions.
Standard Features:
- Low profile and compact design
- Wide distribution pattern with uplight
- Field replaceable LED circuit boards and drivers with quick disconnects
- Hinged mount for access to internal components
- Clear or diffused lens options
- No external fins
Additional Features:
- Pendant, ceiling, wall and stanchion mounting options
- Terminal block
- Mates directly to select competitor mounts
- Optional stainless steel threaded inserts
- Dimming option
- Optional stainless steel guard
- Standard 10kV surge protection
- 7-year warranty
Classifications:
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- cUL
- IP66
- NEMA 4X
- ABS type approved
- Tested to LM79, LM80 standards
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- 55° C ambient temperature
- US Patent # D637,340S
Standard Materials:
- A360 aluminum (less than .4% copper content) with baked-on gray epoxy finis
- Gaskets: One-piece silicone
- Lens: Borosilicate Glass or Polycarbonate
- Hardware: Stainless steel

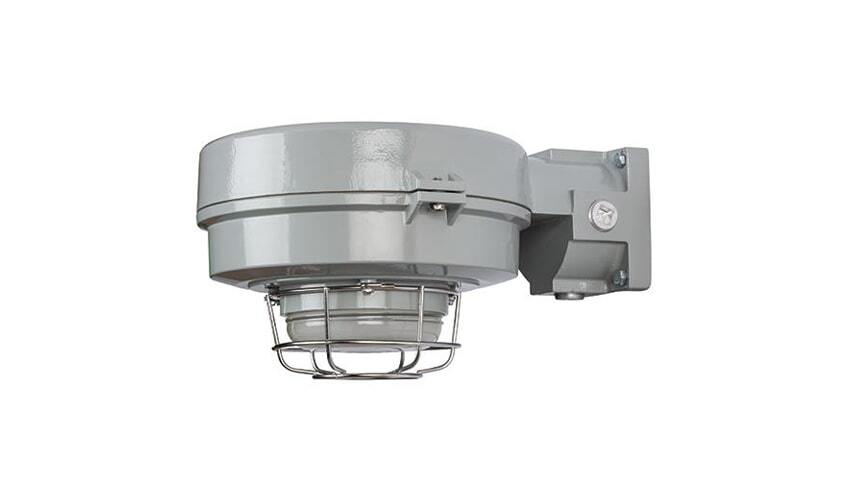

Note: The ALIJ LED is rated for non-hazardous locations. For hazardous areas, see the SAFJ LED
