ALI LED
Low-profile, energy-efficient LED area lighting for harsh-rated locations
ALIJ Hi-Lumen LED
Hi-lumen LED wide-area lighting designed for harsh-rated locations
Industry
General Purpose | Oil Field
Type
LED
Luminaire
Area | Heavy Duty Harsh-Rated
Classification

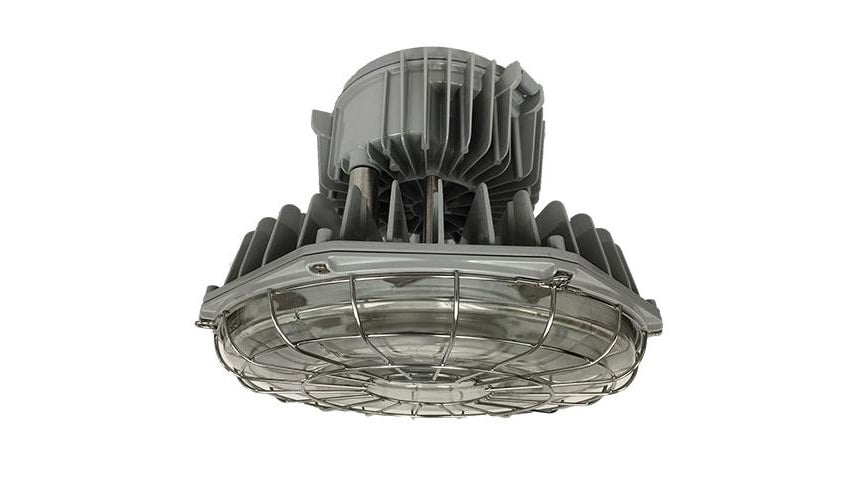

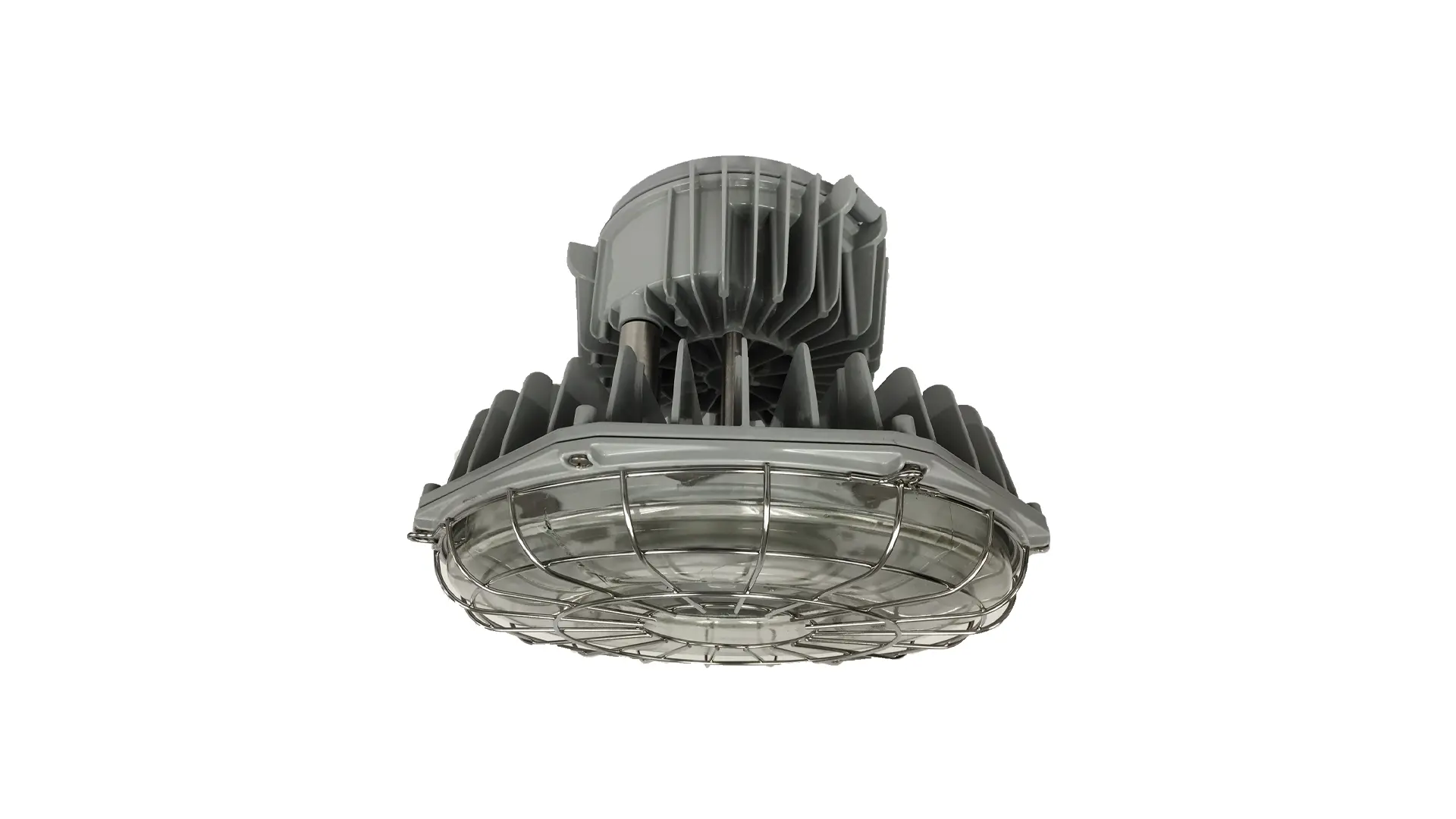

The ALIJ Hi-Lumen LED area light provides heavy duty, wide-area illumination with high lumen output and advanced heat dissipation. Designed for harsh-rated locations, it offers multiple mounting options and superior durability, making it ideal for a variety of tough environments.
Standard Features:
- Wide distribution pattern with uplight
- Field replaceable LEDs and drivers
- Hinged mount for easy access to internal components
- Isolated LED compartment reduces temperature within driver housing
- Unique design enhances airflow for greater heat dissipation
- Heavy-duty tempered glass lens
- Type I, III and V light distribution options
Additional Features:
- Standard 10kV surge protection
- Pendant, ceiling, wall and stanchion mounting options
- Terminal block
- Mates directly to SAFJ/ALIJ and select competitor mounts
- Dimming option
- Optional stainless steel guard
- 7-year warranty
Classifications:
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- cUL
- IP66
- NEMA 4X
- Tested to LM79, LM80 standards
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- Up to 65° C ambient temperature
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: One-piece silicone
- Lens: Borosilicate Glass
- Hardware: Stainless Steel
