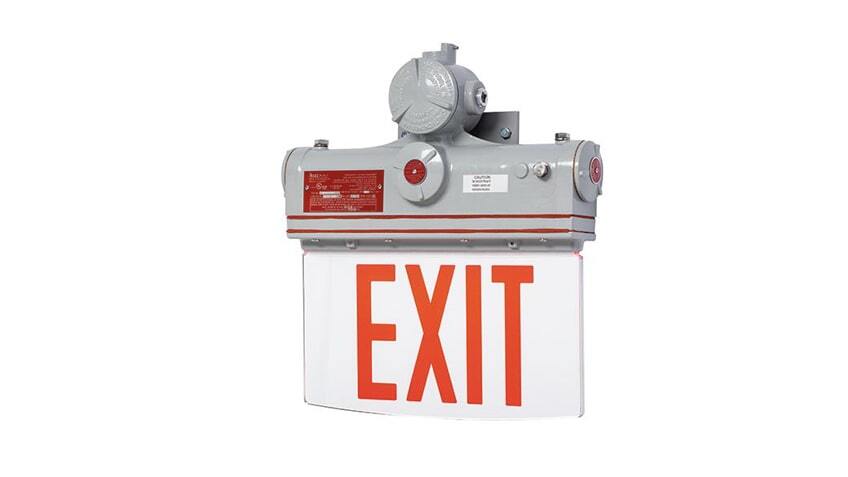

XPS LED
Explosion proof LED location and emergency signage with battery backup for hazardous locations
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Exit and Emergency | Explosion Proof | Hazardous Location | Industrial
Classification
The XPS LED explosion-proof location and emergency signage provides a 3-hour emergency operation with battery backup, edge-lit visibility, and field-replaceable components. Flexible mounting options ensure safe egress in hazardous locations.
Standard Features:
- Emergency battery backup integral to sign (no additional enclosure required)
- 3-hour emergency operation
- Optional battery backup self-diagnostic feature
- Field-replaceable LED circuit boards and drivers with quick disconnects
- Edge-lit sign
Additional Features:
- Wall, pendant and end mounting options
- Custom colors and languages available
- Single- or double-sided option
- Sealed NiCad batteries
- Three 1/2″ NPT hubs
- Red or green LED options
Classifications:
- Class I, Division 1, Groups C & D
- Class II, Division 1, Groups E, F & G
- Class III
- Zone 1, Groups IIA & IIB
- Zone 2, Groups IIA, IIB + H2 and IIC
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 844 hazardous locations
- UL 8750 LED safety
- IP65
- NFPA 70- and NFPA 101-compliant
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- 40ºC ambient temperature (green)
- 55ºC ambient temperature (red)
Standard Materials:
- Body: A356T6 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gasket: one-piece silicone
- Sign: acrylic
- Hardware: stainless steel
Contact Us
Product Details
Approximate Shipping Weight: 14 lb*
