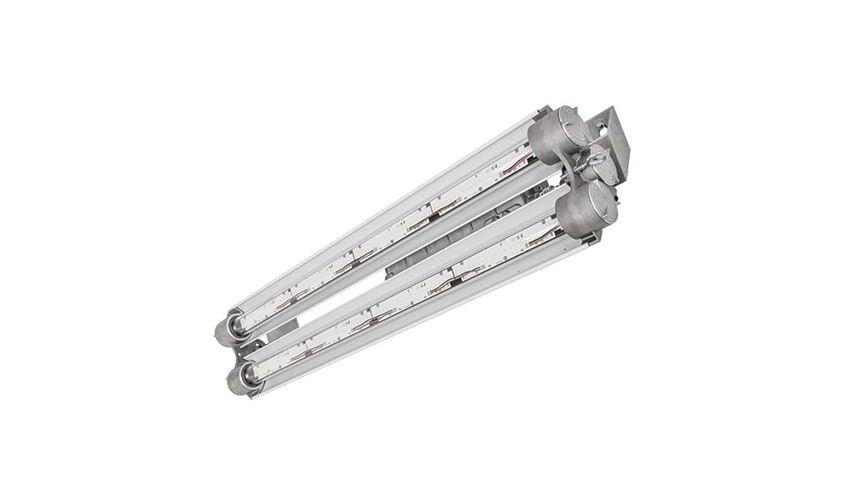

XP LED
Explosion proof LED linear lighting with emergency backup and rugged construction for hazardous-rated environments
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Explosion Proof | Hazardous-Rated | Industrial Lighting | Linear
Classification
The XP LED linear light provides explosion-proof lighting with field-replaceable LED components, emergency backup options, and shock-resistant mounting. Its durable, factory-sealed construction, oversized finned driver housing, and certifications for hazardous-rated and wet locations ensure reliable performance in demanding environments.
Standard Features:
- Two permanent safety cable attachment points
- Field-replaceable LED circuit boards and drivers with quick disconnects
- Wiring access through screw cap covers
- Self-contained emergency battery back-up (optional)
- Oversized, finned driver housing
- Factory sealed
Additional Features:
- Shock-mount and beam clamp mounting options
- 2-, 3-, or 4-tube versions available
- Dimming and outboard options
- 2.5 kV surge protection
- 7-year warranty
Classifications:
- Class I, Division 1, Groups C & D
- Class I, Division 2, Groups C & D
- Class II, Division 1, Groups E, F & G
- Class III
- Zone I, Groups IIA & IIB
- Zone 2, Groups IIA, IIB & IIC
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- UL 844 hazardous locations
- UL 924 emergency lighting
- CSA certified
- IP66
- NEMA 3, 4, 4X, 7CD and 9EFG
- DLC Listed LED
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- Paint Spray Booth
- Seismic tested
- -20°C to 55°C ambient temperature
Standard Materials:
- Body: A361 aluminum (less than .4% copper content)
- Reflector: 6063T5 aluminum (less than .4% copper content) with baked-on white epoxy finish
- Lens: borosilicate glass
- Hardware: stainless steel
Contact Us
Product Details
Lumens: 2,783-10,918
Approximate Shipping Weight: 40-65 lbs*
