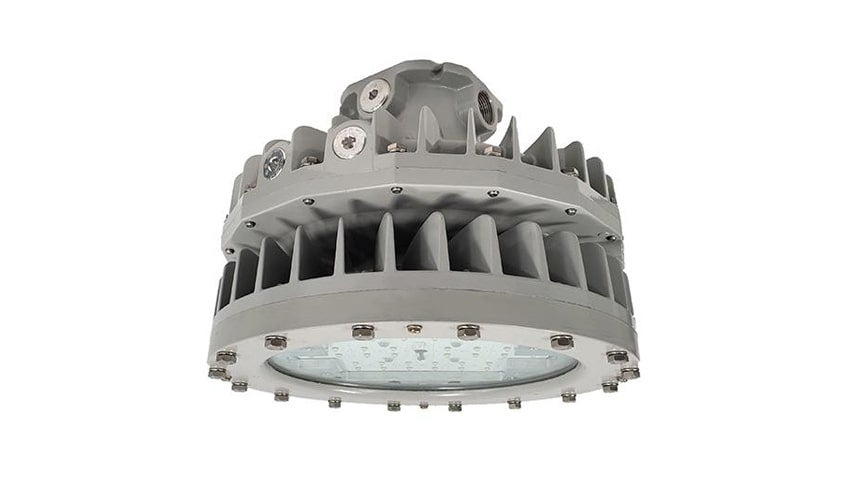

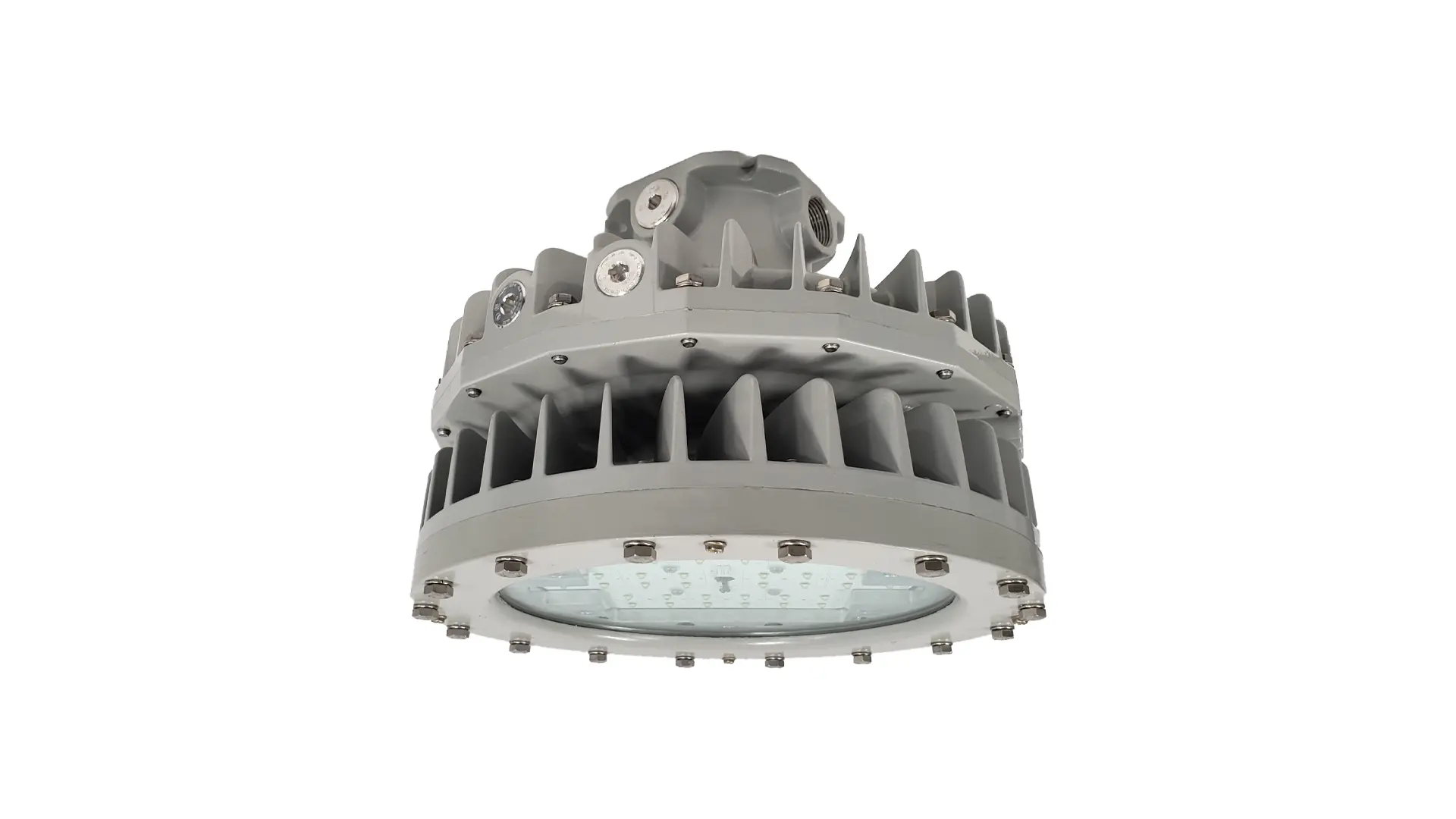

XHBF LED
Explosion proof LED area lighting with emergency backup for harsh and hazardous locations
Industry
Industrial | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Area | Explosion Proof | Hazardous Location | Industrial
Classification
The XHBF LED explosion-proof area light provides durable, high-performance lighting for hazardous and marine environments. Certified for emergency lighting, it features interchangeable optics and advanced safety measures, ensuring reliable illumination in the most demanding conditions.
Standard Features:
- Low profile body, less than 7” high
- Interchangeable optics with Type I, III, V, medium, wide, narrow and very narrow distribution options
- Spring pressure connection terminal block
- Field replaceable LED circuit boards and drivers with quick disconnects
- Optional trunnion mount with five locking positions in 15 degree increments
- Two (2) safety cable attachment points with optional eye-bolts
Additional Features:
- Certified for hydrogen atmospheres (Group B)
- Integral UL 924 Emergency Lighting battery backup option with switching capability
- Mates directly to SXP/SXPJ HID mounts
- 0-10V dimming, range 10-100%
- Standard 10kV surge protection
- 5-year warranty
Classifications:
- Class I, Division 1, Groups C & D
- Class II, Divisions 1, Groups E, F & G
- Class III
- Zone 1 AEx db IIB+H2 T4 Gb
- Zone 21 AEx tb IIIC 135°C Db
- ATEX/IEC/EX approvals
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- UL 844 hazardous locations
- UL 924 emergency lighting
- CSA C22.2 No. 250.0-08
- CSA C22.2 No. 137-M1981 (R2104)
- IP66
- NEMA 4X
- ABS type approved
- Tested to LM79, LM80 standards
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- Simultaneous presence
- Emergency battery backup
- -40°C to 65°C ambient temperature
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: One-piece silicone
- Lens: Tempered glass
- Hardware: Stainless Steel
Contact Us
Product Details
Lumens: 7,094-15,044
Approximate Shipping Weight: 54-57 lbs*
