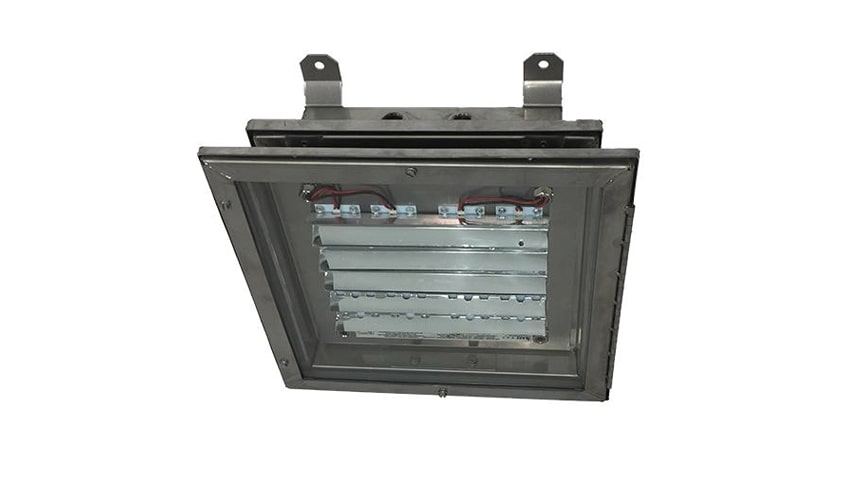

SHLF high-/mid-bay LED

Explosion proof high-/mid-bay LED area lighting for harsh and hazardous locations

Industry

Industrial | Marine | Oil Field | Wastewater Treatment

Type

LED

Luminaire

Area | Explosion Proof | Hazardous Location | High-Bay | Industrial

Classification

BAA Compliant | BABA Compliant | Class I, Division II

The SHLF high-/mid-bay LED area light provides explosion-proof, high-performance illumination with precision optics and is built for hazardous locations. Its durable, heat-dissipating design ensures reliable performance in oil and gas, industrial, and marine environments.

Standard Features:

High-performance precision optics system
Hinged driver access door
Field replaceable LED circuit boards and drivers with quick disconnects
Approved for ambient applications, up to 45° C
Permanent safety cable retention points

Additional Features:

Standard 10kV surge protection
3/4″ NPT hub entry
Separate LED/driver chambers for maximum heat dissipation
Terminal block
5-year warranty

Classifications:

Class I, Division 2, Groups A, B, C & D
Zone 2, Groups IIA, IIB & IIC
UL 844 hazardous locations
UL 1598 wet locations
UL 1598A marine outside type
UL 8750 LED safety
CAN/CSA C22.2 No. 250.0-08
CAN/CSA C22.2 No. 137-M1981
IP66
NEMA 4X
Tested to LM79, LM80 standards
Build America, Buy America Act (BABA) compliant
Buy American Act (BAA) compliant
45°C Ambient Temperature

Standard Materials:

Body: type 304 stainless steel (optional type 316)
Gaskets: Silicone
Lens: Tempered Glass
Hardware: Stainless Steel

Contact Us

Request More Information

To receive a quote or request additional information, please complete the form below and we will contact you as soon as possible. Fields marked with an asterisk (*) are required.

Product Details



View Dimensions



Lumens: 7,248-13,790



Approximate Shipping Weight: 42-45 lbs^*

*Mounting and options may increase weight. See Specifications download for details.
