LFLJ LED

Compact high-bay LED flood lighting for harsh environments

Industry
General Purpose | Industrial | Marine | Oil Field
Type
LED
Luminaire
Flood | High-Bay | Industrial
Classification
BAA Compliant | BABA Compliant | CE | DLC

The LFLJ LED Flood Light delivers high-bay flood lighting for hazardous locations. Featuring a compact, space-saving design and high-performance precision optics, it is ideal for high-ambient applications up to 65ºC. With robust construction and versatile mounting options, this flood light ensures reliable and efficient illumination in demanding environments.

Standard Features:

  • Compact, space-saving design
  • High-performance precision optics system
  • Driver-access plate with stainless steel safety retention chain and captive hardware
  • Field-replaceable LED circuit boards and drivers with quick disconnects
  • Approved for high-ambient applications, up to 65ºC
  • Two permanent safety cable retention points

Additional Features:

  • Versatile trunnion mount, with 180º range of motion
  • Dual hub entries, feed-through capable
  • Terminal block
  • Optional emergency battery back-up
  • 10 kV standard surge protection

Classifications:

  • UL 1598A marine outside type
  • UL 1598 wet locations
  • UL 8750 LED safety
  • CAN/CSA C22.2 No. 250.0-08
  • CE
  • IP66
  • NEMA 4X
  • Tested to standards LM79, LM80
  • DLC Listed LED
  • Build America, Buy America Act (BABA) compliant
  • Buy American Act (BAA) compliant

Standard Materials:

  • Body: low copper aluminum
  • Lens: glass
  • Hardware: stainless steel



Note: The LFLJ LED is rated for non-hazardous locations. For hazardous areas, see the LHFLJ LED

Contact Us

Request More Information

Request More Information

To receive a quote or request additional information, please complete the form below and we will contact you as soon as possible. Fields marked with an asterisk (*) are required.

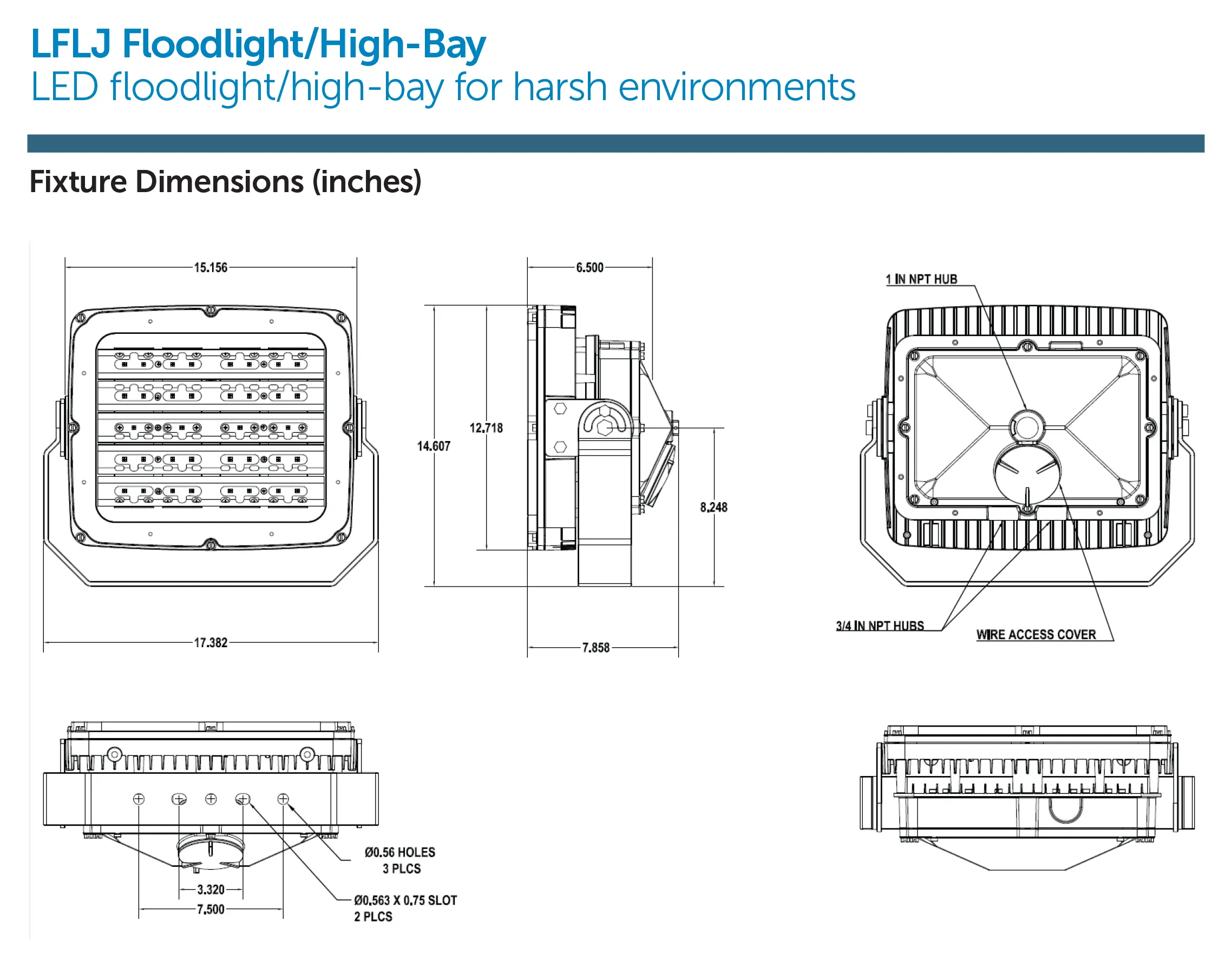

Product Dimensions
