EHRL LED
E-Series hazardous-rated LED high-bay lighting for challenging environments

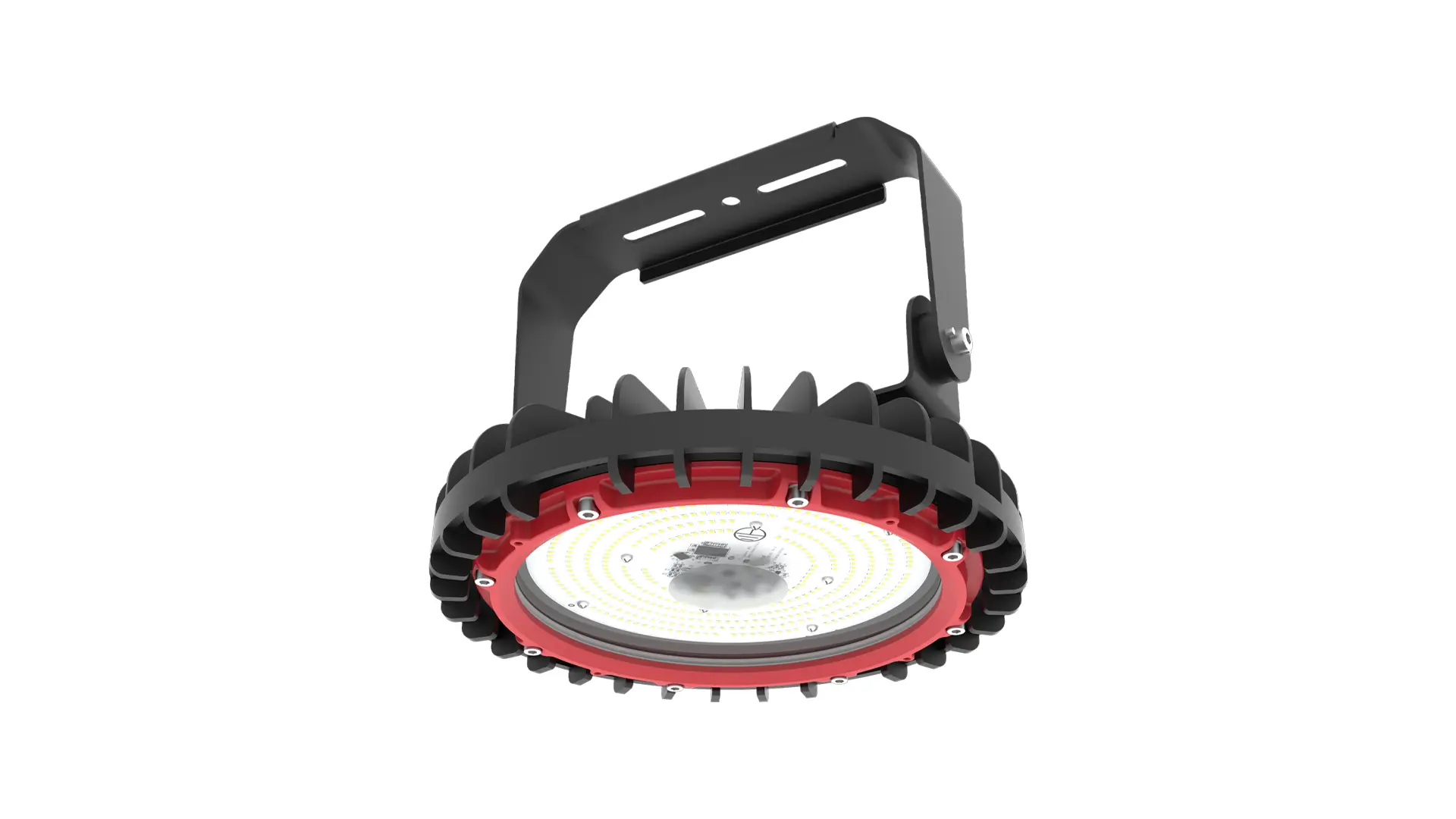

EST LED
E-Series LED high-temperature high-bay lighting for harsh-rated locations
Industry
General Purpose | Wastewater Treatment
Type
LED
Luminaire
E-Series | Heavy Duty Harsh-Rated | High Temperature Lighting | High-Bay
Classification
The EST LED high-temperature high-bay light from the RIG-A-LITE E-Series delivers heavy duty, energy-efficient illumination for harsh-rated environments. Engineered for ambient temperatures up to 90°C, its low-profile, modular design provides 16,000 to 72,000 lumens. An impact-resistant glass lens and advanced thermal management make it a reliable, economical choice for high-temperature and confined space applications.
Standard Features:
- Industry-Leading Thermal Management: Designed to perform in high ambient temperatures up to 90°C
- Low Profile: Designed for low mounting heights and confined spaces
- High-Efficiency LED: Delivers up to 160lm/W, reducing energy costs by up to 75% over conventional lamps
- Modular Design: Provides three models with light output ranging from 16,000 lumens up to 72,000 lumens
- Built to Last: Impact-resistant glass lens is vibration, impact, and shock-resistant
Additional Features:
- Input voltage: AC 120V, 220V, 277V
- High efficacy up to 170lm/W
- Ambient temperature -40°C to 90°C
- Lumen maintenance 150,000 hours @ L70
- Limited system warranty:
– 20,000 hrs @ 90°C (2 years)
– 30,000 hrs @ 80°C (3 years)
– 50,000 hrs @ 70°C (5 years)
Classifications:
- UL 1598 wet locations
- UL 8750 LED safety
- CE
- IP67
- IK09
- NEMA 4X
- Resistant up to 2,000 PSI hose-directed water
- Tested to 1000 hrs. salt spray to standard ASTM “B117-11”
Standard Materials:
- Body: Die-cast aluminum with baked powder epoxy/polyester finish
- Gaskets: High-temperature resistant silicone
- Lens: Vibration, shock, and impact-resistant glass
- Hardware: Stainless steel
