EHSL LED
E-Series explosion-proof LED high-bay linear lighting for hazardous-rated environments
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
E-Series | Explosion Proof | Hazardous Location | High-Bay | Industrial
Classification
The EHSL LED explosion-proof high-bay linear light delivers high-performance lighting with a lightweight, durable design. Part of the RIG-A-LITE E-Series, it combines cost-efficiency with versatility, offering up to 160lm/W, multiple beam angles, and flexible 360° adjustable mounting. Designed for hazardous-rated locations, it ensures reliable operation in extreme environments.
Standard Features:
- Lightweight Design: Optimized design, balanced well for weight, safety, and durability
- Easy Installation: Hinge design makes installation easier and safer for both retrofit and new construction
- High Lumen Output: Provides up to 160lm/W and maintains the same light intensity with less power intensity
- Multiple Beam Angles: 30°, 60°, 90°, 110°, T2, T3, T4 lenses provide more choices for different scenarios
- Adjustable U-bracket: 360° bracket provides flexibility in angle adjustment and passed 5G 3-axis vibration test
Additional Features:
- Universal voltage: AC120-277, 347-480V (50/60Hz)
- High efficacy up to 160lm/W, up to 32,000lm
- Optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
- CCT adjustable (3000K/4000K/5000K)
- Wildlife-friendly amber color options
- 10kV surge protector is standard, 20kV optional
- Dimming: Standard 1-10VDC
- T-rating of T6
- Ambient operating temperature -40°C to 60°C
- Lumen maintenance 150,000 @ L70
- Optional self-testing emergency battery backup for non-hazardous applications
- 5-year warranty
Classifications:
- Class I, Division 1, Groups C & D
- Class I, Division 2, Groups A, B, C, & D
- Class II, Division 1, Groups E, F & G
- Class III
- Class I, Zone 1, Group IIB
- Class I, Zone 2, Group IIC
- Zone 21
- UL 844 hazardous locations
- UL 1598 wet locations
- UL 1598A marine outside type
- UL 8750 LED safety
- CSA C22.2 No. 137-M1981
- CSA C22.2 No. 250.0-08
- IP67
- IK09
- NEMA 4X
- 5G
- Resistant up to 2,000 PSI hose-directed water
- Tested to 1000 hrs. salt spray to standard ASTM “B117-11”
Standard Materials:
- Body: Housing, splice box, and adapter are die-cast copper-free aluminum with baked powder epoxy/polyester finish
- Gaskets: High-temperature resistant silicone
- Lens: Heat, shock, and impact-resistant clear or diffused glass
- Hardware: Stainless steel with lacquer-free nameplate
Related Featured Story
You may also like:

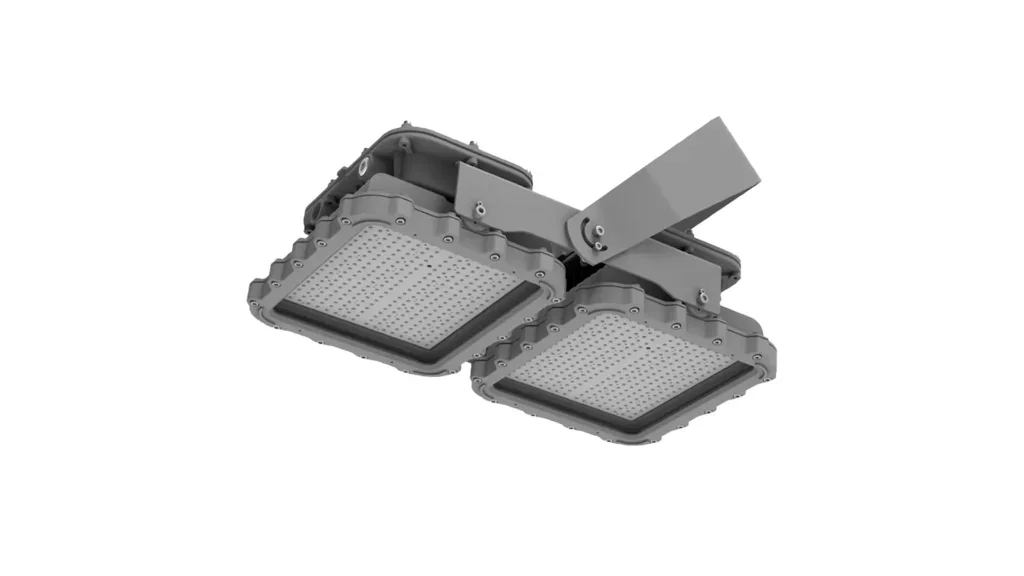

EHSL Duplex LED
