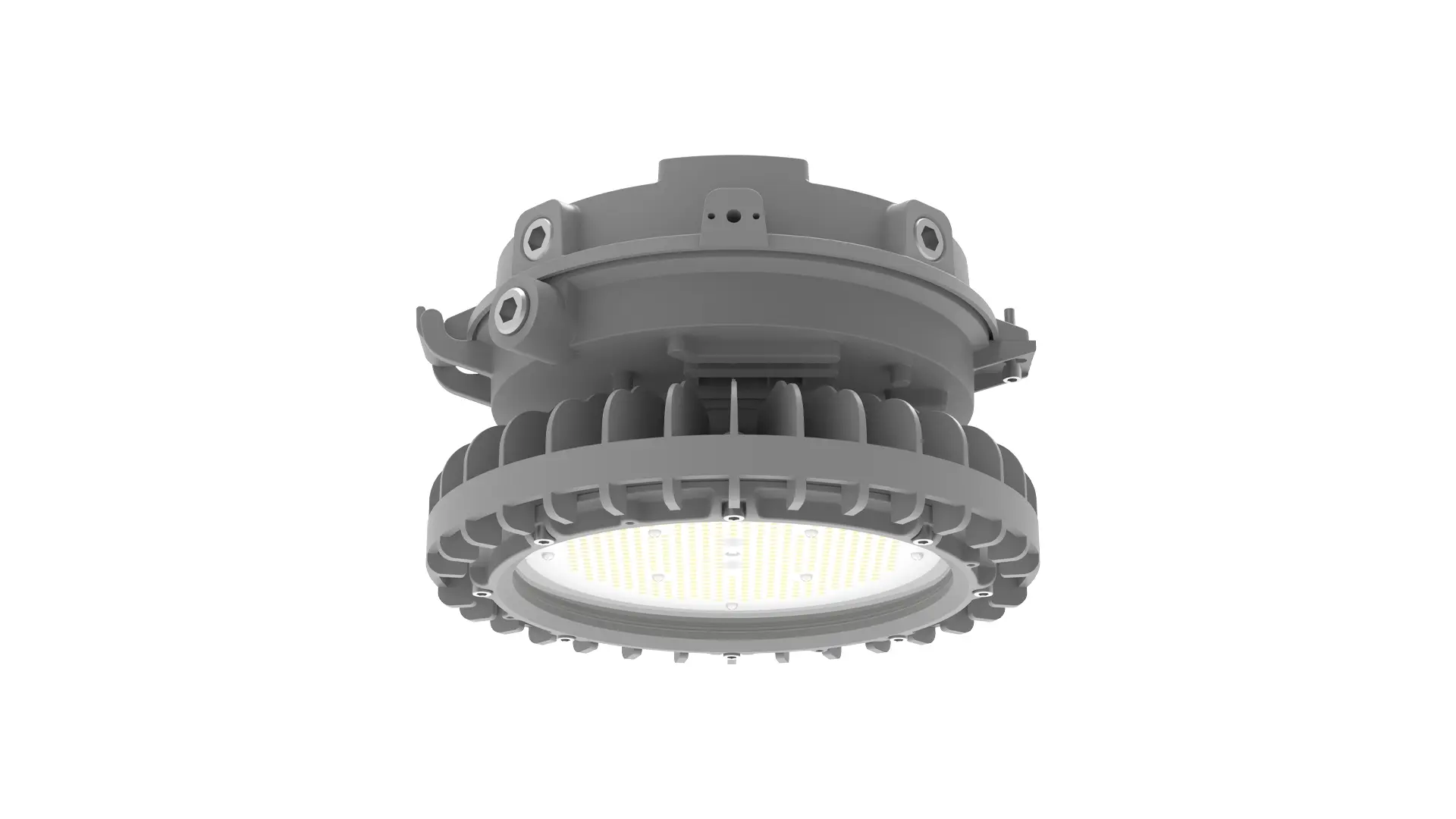

EHRL LED
E-Series explosion-proof LED high-bay lighting for hazardous-rated environments
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
E-Series | Explosion Proof | Hazardous Location | High-Bay | Industrial
Classification
Delivering explosion-proof illumination for hazardous-rated locations, the EHRL LED economical high-bay light from the RIG-A-LITE E-Series combines reliability and energy efficiency. Its retrofit-friendly, low-profile design achieves up to 170lm/W, cutting energy costs by 75%. Beam angle options, color temperature adjustability, and expandability enhance its versatility.
Standard Features:
- Easy Installation: Single barrel nut and hinge design, one-hand operation for quick and easy installation
- Low Profile: 196mm in height with maximum 34,000-lumen output fits perfectly in confined areas
- High Efficacy: Lumen efficacy up to 170lm/W, reducing energy costs by up to 75% over conventional
- Retrofit Friendly: Universal mounting accessories minimize the SKUs and maximize the flexibility
- Built to Last: Copper-free aluminum and impact-resistant lens provide ingress protection
- Expandability: Compatible with sensors for intelligent, adaptable lighting solutions
Additional Features:
- Universal voltage: AC120-277, 347-480V (50/60Hz)
- Optional self-testing emergency battery backup
- High efficacy up to 170lm/W
- Optics: T1 / T3 / 110° beam angle
- CCT adjustable (3000K/4000K/5000K)
- Wildlife-friendly amber color options
- 10kV surge protector is standard, 20kV optional
- Dimming: Standard 1-10VDC
- Ambient operating temperature -40°C to 65°C (standard model); 0°C to 50°C (emergency battery backup model)
- Lumen maintenance 150,000 @ L70
- 5-year warranty
Classifications:
- Class I, Division 2, Groups A, B, C, & D
- Class II, Division 1, Groups E, F & G
- Class III
- Class I, Zone 2, Group IIC
- Zone 21, Zone 22
- UL 844 hazardous locations
- UL 1598 wet locations
- UL 1598A marine outside type
- UL 8750 LED safety
- CSA C22.2 No. 137-M1981
- CSA C22.2 No. 250.0-08
- IP67
- IK09
- NEMA 4X
- 5G
- Resistant up to 2,000 PSI hose-directed water
- Tested to 1000 hrs. salt spray to standard ASTM “B117-11”
Standard Materials:
- Body: Housing, splice box, and adapter are die-cast copper-free aluminum with baked powder epoxy/polyester finish
- Gaskets: High-temperature resistant silicone
- Lens: Heat, shock, and impact-resistant glass or polycarbonate
- Hardware: Stainless steel
