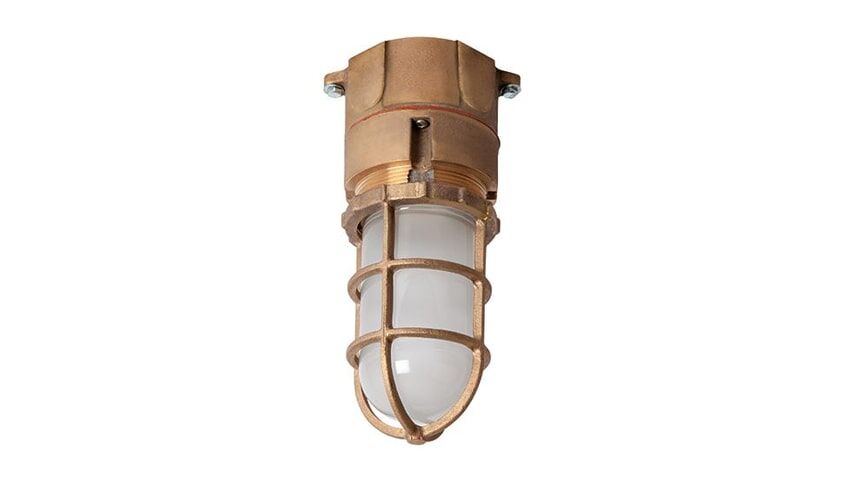

BVP LED

Brass globe and guard LED area lighting for wet, marine and harsh-rated locations

Industry

Marine | Oil Field | Wastewater Treatment

Type

LED

Luminaire

Area | Globe and Guard | Heavy Duty Harsh-Rated

Classification

BAA Compliant | BABA Compliant

The BVP LED brass globe and guard area light provides heavy duty, high-lumen lighting with a rugged marine-brass housing and frosted globe for glare reduction. This fixture is built for harsh-rated environments, featuring field-replaceable LED components, supplemental 10kV surge protection, and versatile mounting options (ceiling, pendant, or wall).

Standard Features:

Compact luminaire with high lumen output
Rugged 5/32″ thick housing
Glare-reducing frosted globe
Field-replaceable LED circuit boards and drivers with quick disconnects
Standard protective guard

Additional Features:

Supplemental 10kV surge protection
Ceiling, pendant and wall mounting options
No external fins
Optional dimming driver
2 kV surge protection
7-year warranty

Classifications:

UL 1598 wet locations
UL 1598A marine outside type
UL 8750 LED safety
cUL
NEMA 3, 4 & 4X
ABS type approved
Build America, Buy America Act (BABA) compliant
Buy American Act (BAA) compliant
-20°C to 25°C ambient temperature

Standard Materials:

Body: marine brass
Guard: marine brass
Gasket: one-piece silicone
Lens: borosilicate glass
Hardware: stainless steel

Note: The BVP LED is rated for non-hazardous locations. For hazardous areas, see the AVPH LED

Contact Us

Request More Information

To receive a quote or request additional information, please complete the form below and we will contact you as soon as possible. Fields marked with an asterisk (*) are required.

Product Details



View Dimensions



Lumens: 1,769



Approximate Shipping Weight: 7.5-14.5 lbs^*
