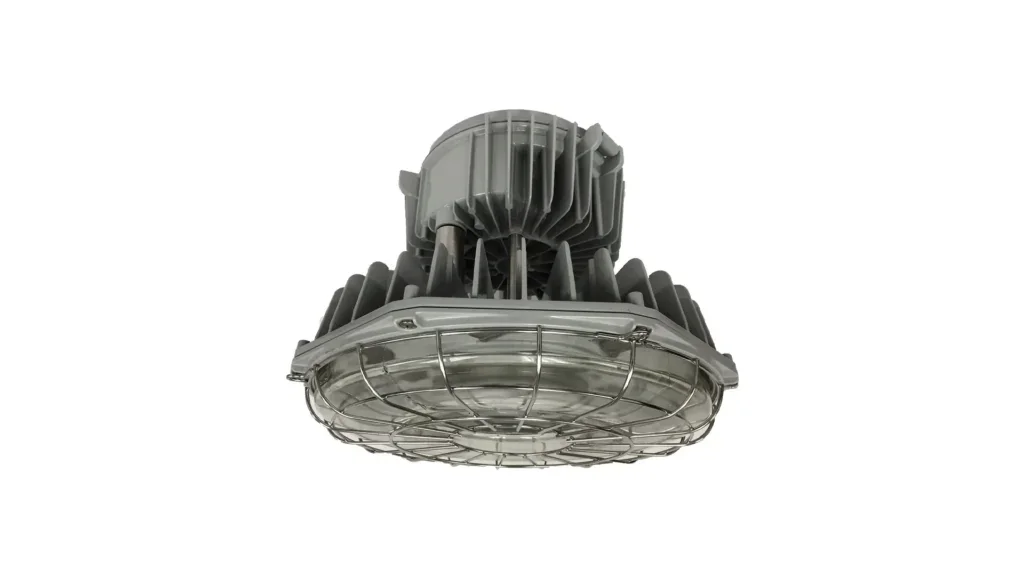

ALIJ Hi-Lumen LED
Hi-lumen LED wide-area lighting designed for demanding environments
ALIJ Hi-Lumen LED
ALI LED
Low-profile energy-efficient LED area lighting for demanding environments
Industry
General Purpose | Industrial | Marine | Oil Field
Type
LED
Luminaire
Area | Industrial
Classification
The ALI LED area light offers versatile, high-performance lighting with a wide distribution pattern and multiple mounting options. Designed for durability in harsh environments, this low-profile, energy-efficient LED area light is ideal for marine, wet location, and industrial applications.
Standard Features:
- Optics feature wide distribution pattern with uplight
- Hinged mount for access to internal components
- Field replaceable LED circuit boards and drivers with quick disconnects
- Clear/ diffused lens options
- Low profile
- No external fins
Additional Features:
- Pendant, ceiling, wall and stanchion mounting options
- Terminal block
- Optional adapter ring mates to select competitor mounts
- Optional stainless steel threaded inserts
- Dimming option
- Optional stainless steel guard
- Standard 10kV surge protection
- 5-year warranty
Classifications:
- UL 8750 LED safety
- UL 1598 wet locations
- UL 1598A marine outside type
- cUL
- IP66
- NEMA 4X
- ABS type approved
- Tested to LM79, LM80 standards
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- US Patent # D637,339S
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: One-piece silicone
- Lens: Borosilicate glass or Polycarbonate
- Hardware: Stainless Steel
Note: The ALI LED is rated for non-hazardous locations. For hazardous areas, see the SAFR LED
