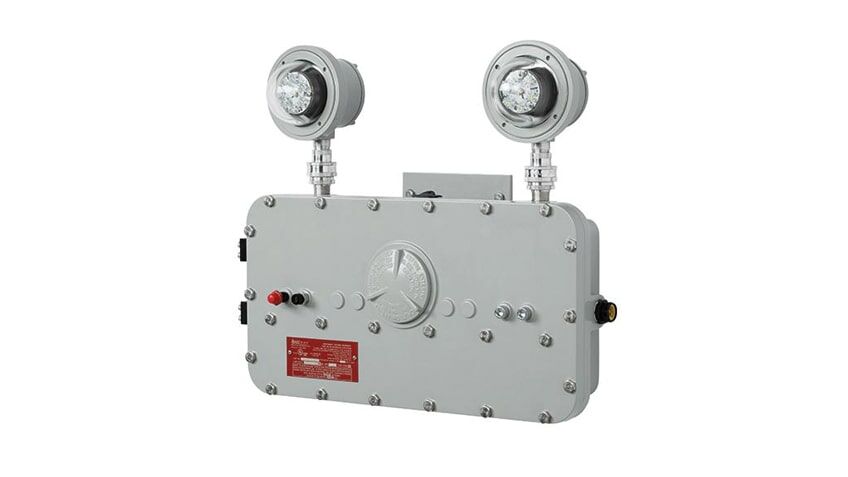

XPEL LED
Explosion proof emergency lighting ensures visibility in hazardous locations
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Exit and Emergency | Explosion Proof | Hazardous Location | Industrial
Classification
The XPEL LED explosion-proof emergency lighting ensures reliable, high-lumen LED illumination with 3-hour battery backup for hazardous locations, meeting NFPA and NEMA standards for extreme environments.
Standard Features:
- Two adjustable high-lumen spotlights
- Unit can power up to two optional remote spotlights
- Field-replaceable LED circuit boards and drivers with quick disconnects
- Emergency battery backup integral to luminaire (no additional enclosure required)
- 3-hour emergency operation
Additional Features:
- Captive hinged-access door
- Wide- and narrow-beam optics available
- Separate push-to-test and pilot light for local and remote heads
- Three 1″ NPT hubs
Classifications:
- Class I, Division 1, Groups C & D
- Class II, Division 1, Groups E, F & G
- Class III
- Zone 1, Groups IIA & IIB
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 844 hazardous locations
- UL 8750 LED safety
- UL 924 emergency lighting
- cUL
- IP65
- NEMA 4X
- NFPA 70- and NFPA 101-compliant
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gasket: one-piece neoprene
- Hardware: stainless steel
Contact Us
Product Details
Lumens: 421 per head
Approximate Shipping Weight: 35-38 lbs*
