SHLF LED
Explosion proof LED flood lighting for hazardous loacations
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Explosion Proof | Flood | Hazardous Location | Industrial
Classification

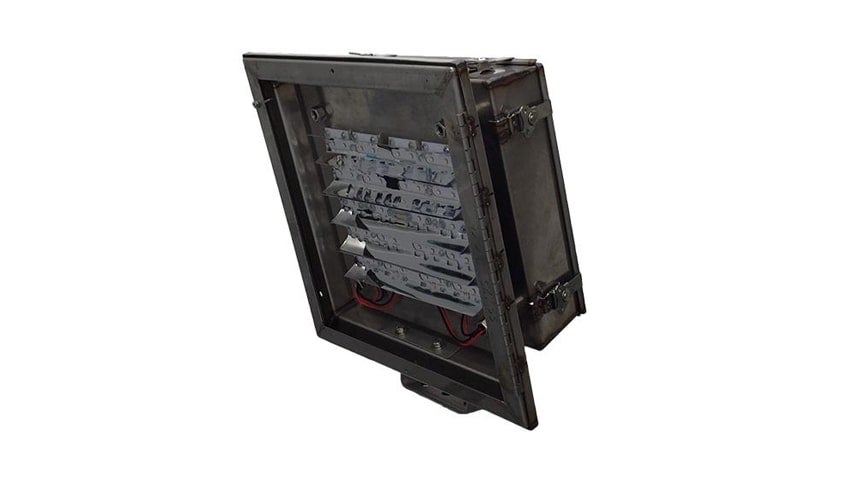

The SHLF LED Flood Light is an explosion-proof hazardous location flood light designed for ambient applications up to 45°C. Featuring a high-performance precision optics system, hinged driver access door, and field-replaceable LED circuit boards, this flood light ensures superior illumination and durability in demanding environments. With robust construction and essential safety features, the SHLF LED provides reliable and efficient lighting for hazardous locations.
Standard Features:
- High-performance precision optics system
- Hinged driver access door
- Field replaceable LED circuit boards and drivers with quick disconnects
- Approved for ambient applications, up to 45° C
- Two (2) permanent safety cable retention points
Additional Features:
- Standard 10kV surge protection
- 3/4″ NPT hub entry
- Separate LED/driver chambers for maximum heat dissipation
- Terminal block
- 5-year warranty
Classifications:
- Class I, Division 2, Groups A, B, C & D
- Zone 2, Groups IIA, IIB & IIC
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- UL 844 hazardous locations
- CAN/CSA C22.2 No. 250.0-08
- CAN/CSA C22.2 No. 137-M1981
- IP66
- NEMA 4X
- Tested to LM79, LM80 Standards
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- 45°C ambient temperature
Standard Materials:
- Body: type 304 stainless steel (optional type 316)
- Gaskets: Silicone
- Lens: Tempered Glass
- Hardware: Stainless Steel
Contact Us
Product Dimensions
Lumens: 7,248-13,790
Approximate Shipping Weight: 42-45 lbs*
