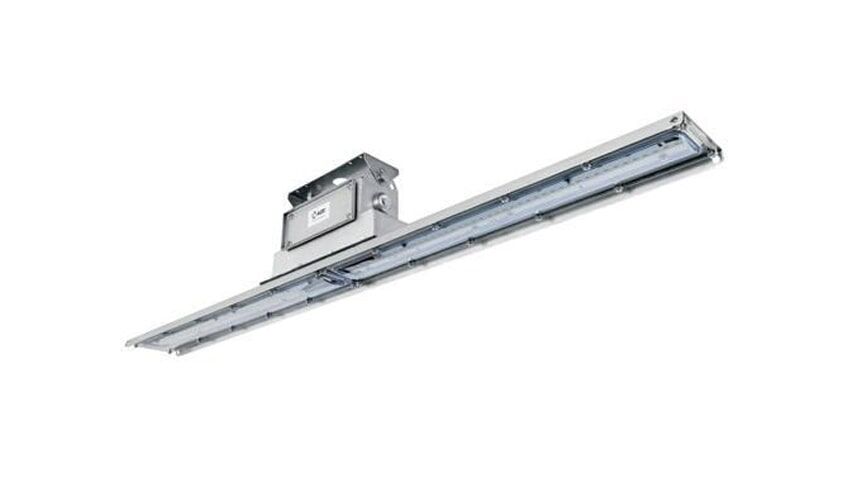

MLS LED

Low-profile stainless-steel LED linear lighting provides corrosion-resistance in harsh-rated locations

Industry

Marine | Oil Field

Type

LED

Luminaire

Heavy Duty Harsh-Rated | Linear

Classification

BAA Compliant | BABA Compliant

The MLS LED linear light offers low-profile, heavy duty lighting for harsh-rated environments. It features field-replaceable LEDs, toolless entry, and adjustable brackets for flexible installation. Impact-resistant lenses, 10kV surge protection, and emergency backup options ensure reliable performance in tough applications.

Standard Features:

Low-profile, lightweight design
Integral safety cable attachment points
Toolless, cage-clamp terminal block
Captive junction box cover, attached by nylon-coated stainless steel cable
Field replaceable LED circuit boards and drivers with quick disconnects
Adjustable mounting bracket with 60° range of motion and nine locking positions*
Impact resistant clear lens

Additional Features:

Central safety cable attachment points for increased safety/reduced range of motion
Feed-through capable
Optional end brackets for chain mount applications
Emergency battery back-up
Diffused lens option
Standard 10kV surge protection
7-year warranty

Classifications:

UL 1598A marine inside type
UL 1598 wet locations
UL 8750 LED safety
UL 924 emergency lighting
CSA C22.2 No. 250.0-08
IP66
NEMA 4X
Tested to LM79, LM80 standards
Build America, Buy America Act (BABA) compliant
Buy American Act (BAA) compliant

Standard Materials:

Body: Type 304 stainless steel, optional type 316
Driver body: Type 304 stainless steel, optional type 316
Gaskets: one-piece neoprene
Optional end brackets: stainless steel
Lens: polycarbonate
Hardware: stainless steel

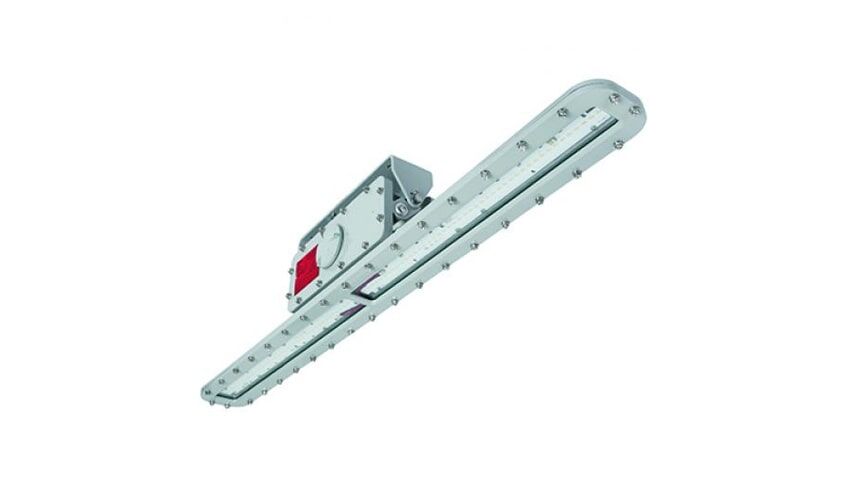

Note: The MLS LED is rated for non-hazardous locations. For hazardous areas, see the MHLS LED
