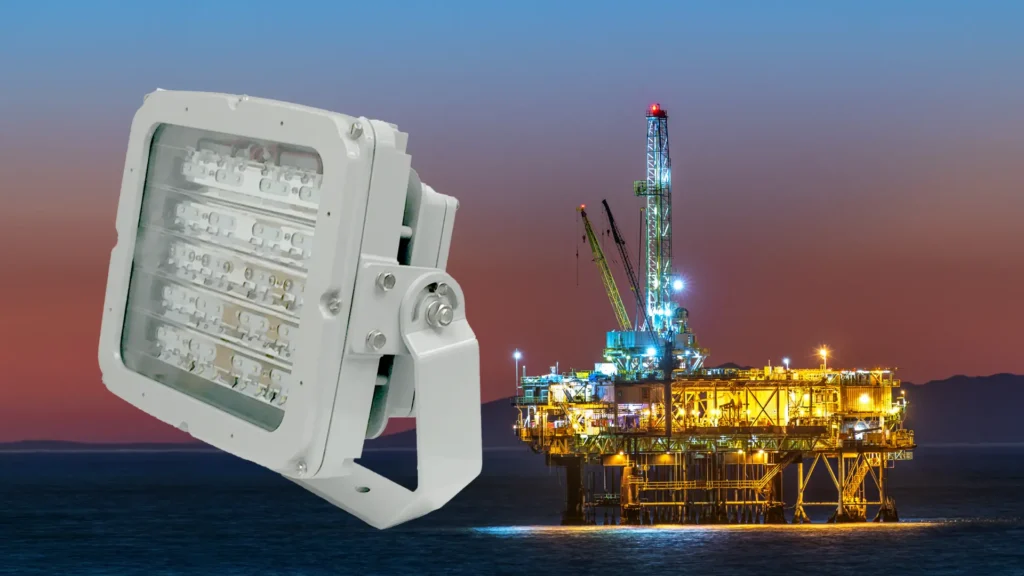

Introducing the Revolutionary LHFLJ LED Floodlight: Providing Superior, Easier to Install Illumination
If you’ve ever installed a heavy industrial light fixture, you know it can be a challenge.
This product is available for QuickShip Online Ordering (U.S. orders only)
Lighting Solutions
LHFLJ LED
Explosion proof, compact high-bay LED flood lighting for hazardous locations
$1,781.48 – $2,209.66
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Explosion Proof | Flood | Hazardous Location | High-Bay | Industrial
Classification
The LHFLJ LED Flood Light is an explosion-proof, high-bay floodlight designed for high-ambient applications up to 65°C. Its compact design and high-performance precision optics system ensure reliable illumination in hazardous locations. With features like field-replaceable LED circuit boards, flexible mounting options, and supplemental surge protection, the LHFLJ LED Flood Light provides superior performance and safety in demanding environments.
Standard Features:
- Compact design
- High-performance precision optics system
- Field-replaceable LED circuit boards and drivers with quick disconnects
- Approved for high-ambient applications, up to 65° C
- Two permanent safety cable retention points
- Flexible universal mounting system allows for trunnion or pendant installation
Additional Features:
- Supplemental 10kV surge protection
- Dual hub entries, feed-through capable
- Optional polycarbonate lens
- Terminal block
- Optional emergency battery back-up
- 5-year warranty
Classifications:
- Class I, Division 2, Groups A, B, C & D
- Class II, Divisions 1 and 2, Groups E, F & G
- Class III
- ATEX/IEC/EX approvals
- Zone 2, Groups IIA, IIB & IIC
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- UL 844 hazardous locations
- CAN/CSA C22.2 No. 250.0-08
- CAN/CSA C22.2 No. 137-M1981
- IP66
- NEMA 4X
- ABS type approved
- Tested to standards LM79, LM80
- DLC Listed LED
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- 65°C ambient temperature (Class I, Division 2)
- 55°C ambient temperature (Class II & III)
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: silicone
- Lens: tempered glass
- Hardware: stainless steel
Note: The LHFLJ LED is rated for hazardous locations. For non-hazardous areas, see the LFLJ LED
QuickShip Model Information
| QuickShip Models | LHFLJ12LUTP76, LHFLJ13LUTP76, LHFLJ15LUTP76 |
|---|---|
| Watts | 98 / 119 / 132 |
| Operating Voltage | 120V – 277 V 50/60 Hz |
| Total Lumens | 12,919 / 14,121 / 15,359 |
| Lumens per Watt | 131 / 119/ 116 |
| CRI | 71 / 71 / 72 |
| CCT | 4,824 / 4,994 / 4,961 |
| Ambient Temperature | -40°C < Tamb <65°C |
Contact Us

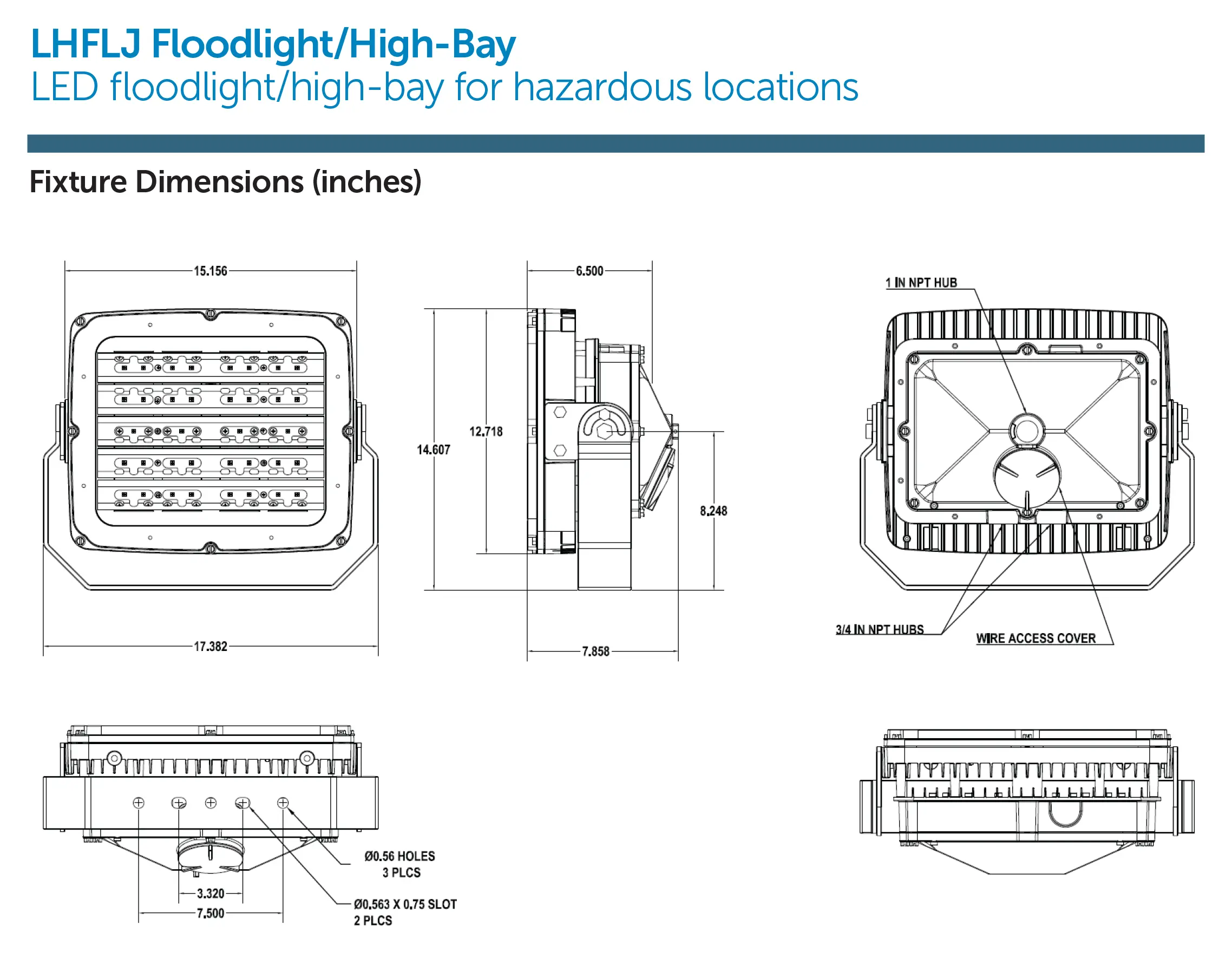

Product Dimensions
Lumens: 8,059-16,420
Approximate Shipping Weight: 30-34 lbs*
