LHFL LED
Explosion proof high-bay LED flood lighting for hazardous locations
$2,435.72
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Explosion Proof | Flood | Hazardous Location | High-Bay | Industrial
Classification
The LHFL LED Flood Light is a high-bay industrial LED floodlight designed for high-ambient applications up to 65°C. Featuring a high-performance precision optics system, field-replaceable LED circuit boards and drivers, and supplemental surge protection, this flood light ensures efficient, explosion-proof illumination in hazardous locations. With its robust construction and versatile features, the LHFL LED Flood Light is ideal for various industrial environments.
Standard Features:
- High-performance precision optics system
- Field-replaceable LED circuit boards and drivers with quick disconnects
- Approved for high-ambient applications, up to 65° C
- Two permanent safety cable retention points
- Terminal block
Additional Features:
- Supplemental 10kV surge protection
- Dual hub entries, feed-through capable
- Optional polycarbonate lens
- Terminal block
- 5-year warranty
Classifications:
- Class I, Division 2, Groups A, B, C & D
- Class II, Divisions 1 and 2, Groups E, F & G
- Class III
- ATEX/IEC/EX approvals
- Zone 2, Groups IIA, IIB & IIC
- UL 1598A marine outside type
- UL 1598 wet locations
- UL 8750 LED safety
- UL 844 hazardous locations
- CAN/CSA C22.2 No. 250.0-08
- CAN/CSA C22.2 No. 137-M1981
- IP66
- NEMA 4X
- ABS type approved
- Tested to standards LM79, LM80
- DLC Listed LED
- Build America, Buy America Act (BABA) compliant
- Buy American Act (BAA) compliant
- 65°C ambient temperature (Class I, Division 2)
- 55°C ambient temperature (Class II & III)
Standard Materials:
- Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
- Gaskets: silicone
- Lens: tempered glass
- Hardware: stainless steel
Note: The LHFL LED is rated for hazardous locations. For non-hazardous areas, see the LFL LED
QuickShip Model Information
| QuickShip Models | LHFL20LUTP76 |
|---|---|
| Style | CIDII, CIIDI & DII Flood |
| Watts | 164 |
| Operating Voltage | 120V – 277 V 50/60 Hz |
| Total Lumens | 20,239 |
| Lumens per Watt | 124 |
| CRI | 72 |
| CCT | 5,046 |
| Ambient Temperature | -40°C < Tamb <65°C |
Contact Us

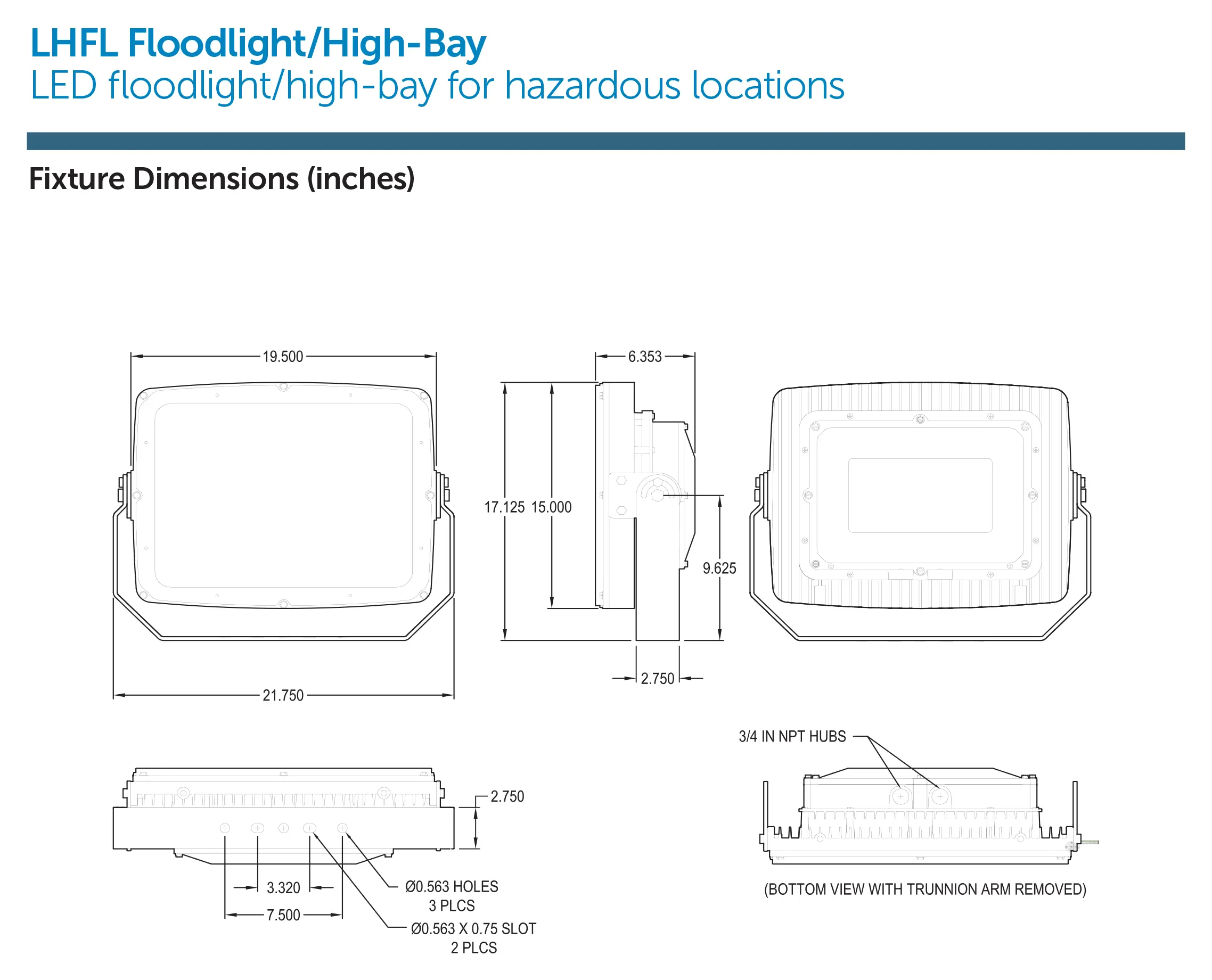

Product Dimensions
Lumens: 8,059-25,940
Approximate Shipping Weight: 38-47 lbs*
