HLHB Hi-Lumen LED

Hazardous-rated LED high bay light for challenging environments

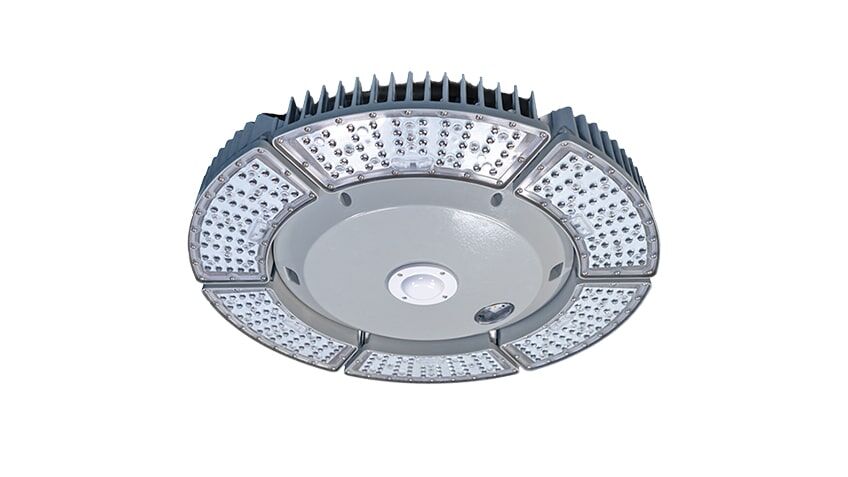

HLHB Hi Lumen LED Explosion-Proof LED UFO high bay light
Industry
Industrial | Oil Field | Wastewater Treatment
Type
LED
Luminaire
Hazardous-Rated | High-Bay | Industrial Lighting
Classification
BAA Compliant | BABA Compliant | Class I, Division II | DLC

The HLHB Hi-Lumen LED hazardous-rated high-bay light offers high-performance lighting for challenging environments. It is designed with interchangeable optics, emergency backup, and rugged construction for demanding industrial applications.

Standard Features:

  • Four (4) 12” Stainless steel sash chains for convenient access to the wiring compartment
  • Spring pressure connection terminal block
  • Interchangeable optics with 45, 60, 90 and 120 degree beam angle options
  • Field replaceable LED circuit boards, LED modules and drivers with quick disconnects
  • Four (4) safety cable attachment points

Additional Features:

  • Pendant, chain/cable, and surface mounting
  • Emergency battery backup option
  • 0-10V dimming, range 10-100%
  • Standard 10kV surge protection
  • 7-year warranty

Classifications:

  • Class I, Division 2, Groups A, B, C, & D
  • UL 1598 wet locations
  • UL 1598A marine outside type
  • UL 8750 LED safety
  • UL 844 hazardous locations
  • CSA C22.2 No. 250.0-08
  • CSA C22.2 No. 137-18
  • IP66
  • NEMA 4X
  • DLC Listed LED
  • Tested to LM79, LM80 standards
  • Build America, Buy America Act (BABA) compliant
  • Buy American Act (BAA) compliant
  • Emergency backup battery
  • -40°C to 70°C ambient temperature

Standard Materials:

  • Body: A360 aluminum (less than .4% copper content) with baked-on gray epoxy finish
  • Gaskets: One-piece silicone
  • Lens: Polycarbonate
  • Hardware: Stainless steel

Note: The HLHB Hi-Lumen LED is rated for hazardous locations. For non-hazardous areas, see the HLB Hi-Lumen LED

Contact Us

Request More Information

Request More Information

To receive a quote or request additional information, please complete the form below and we will contact you as soon as possible. Fields marked with an asterisk (*) are required.


Product Details

View Dimensions

Lumens: 30,973-95,813

Approximate Shipping Weight: 57-77 lbs*

*Mounting and options may increase weight. See Specifications download for details.
