ESM LED
E-Series modular LED stadium flood light for harsh-rated locations
Industry
General Purpose | Wastewater Treatment
Type
LED
Luminaire
E-Series | Flood | Heavy Duty Harsh-Rated
Classification

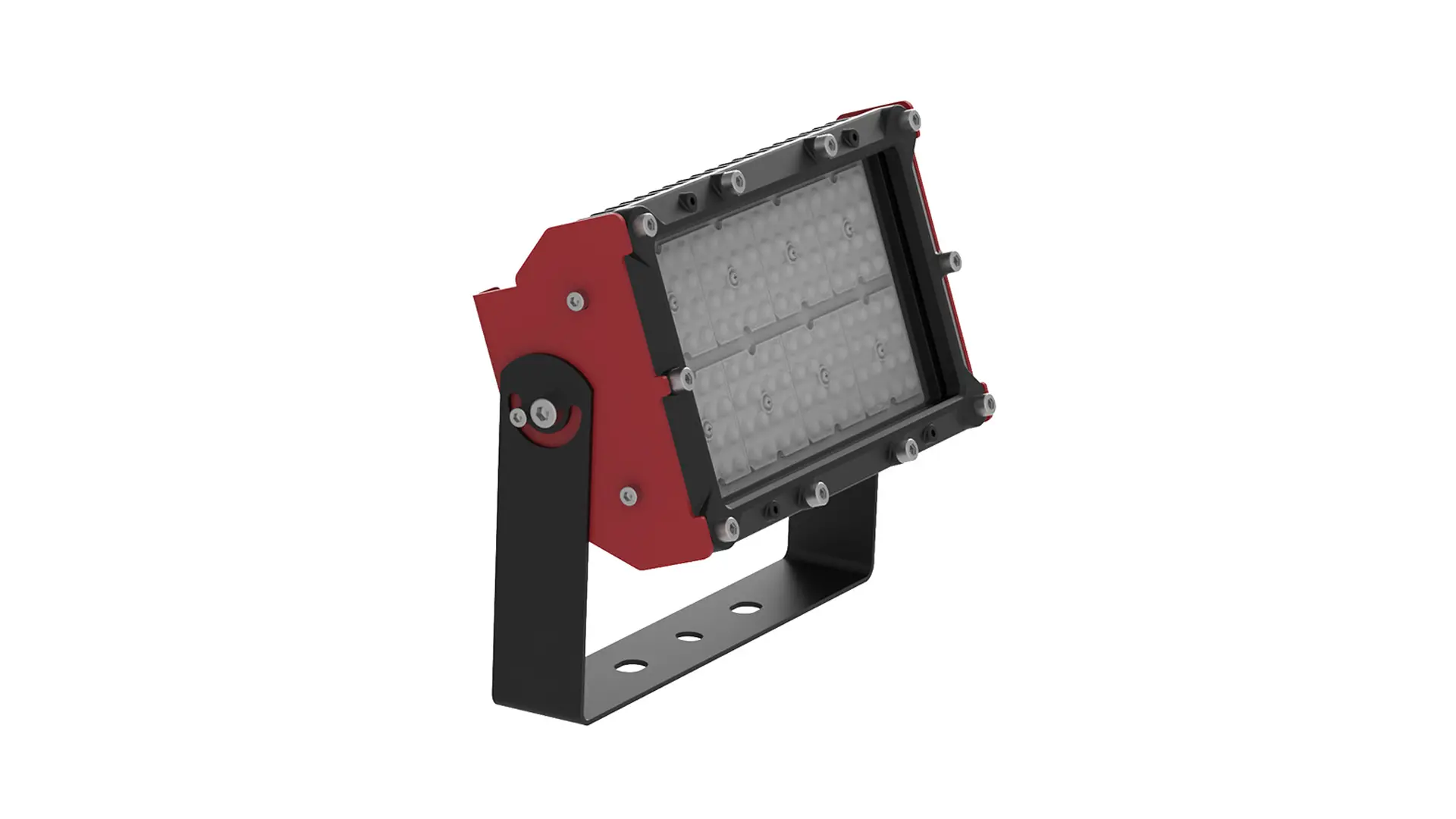

The ESM LED modular stadium flood light from the RIG-A-LITE E-Series delivers heavy duty, cost-effective illumination for harsh-rated environments. Its durable aluminum housing and tempered glass lens provide reliable performance with 16,000 to 96,000 lumens outputs. This economical lighting solution is designed for adaptability and durability in stadiums and other wet, demanding environments.
Standard Features:
- Built to Last: Highly durable aluminum housing is corrosion-resistant
- Modular Design: Provides four models with light output ranging from 16,000 lumens up to 96,000 lumens
- Glass Lens: Passed IK08, tempered glass is resistant to vibration, impact, and shock
- Multiple Optics: Different lenses provide more choices for various scenarios: 35°, 60°, 90°, 110°, T2, T3, T4
- Adjustable U-Bracket: Allows an easy alignment of the floodlight
Additional Features:
- Universal voltage: AC120-277-480V (50/60Hz)
- High efficacy up to 170lm/W, up to 32,000lm
- 7 different optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
- CCT adjustable (3000K / 4000K / 5000K)
- Wildlife-friendly amber color options
- Ambient temperature -40°C to 50°C
- Lumen maintenance L70 > 150,000 hours @ 25°C
Classifications:
- UL 1598 wet locations
- UL 8750 LED safety
- CE
- IP67
- IK08
- NEMA 4X
Standard Materials:
- Body: Housing is die-cast copper-free aluminum with baked powder epoxy/polyester finish
- Gaskets: High-temperature resistant silicone
- Lens: Vibration, shock, and impact-resistant glass
- Hardware: Stainless steel
