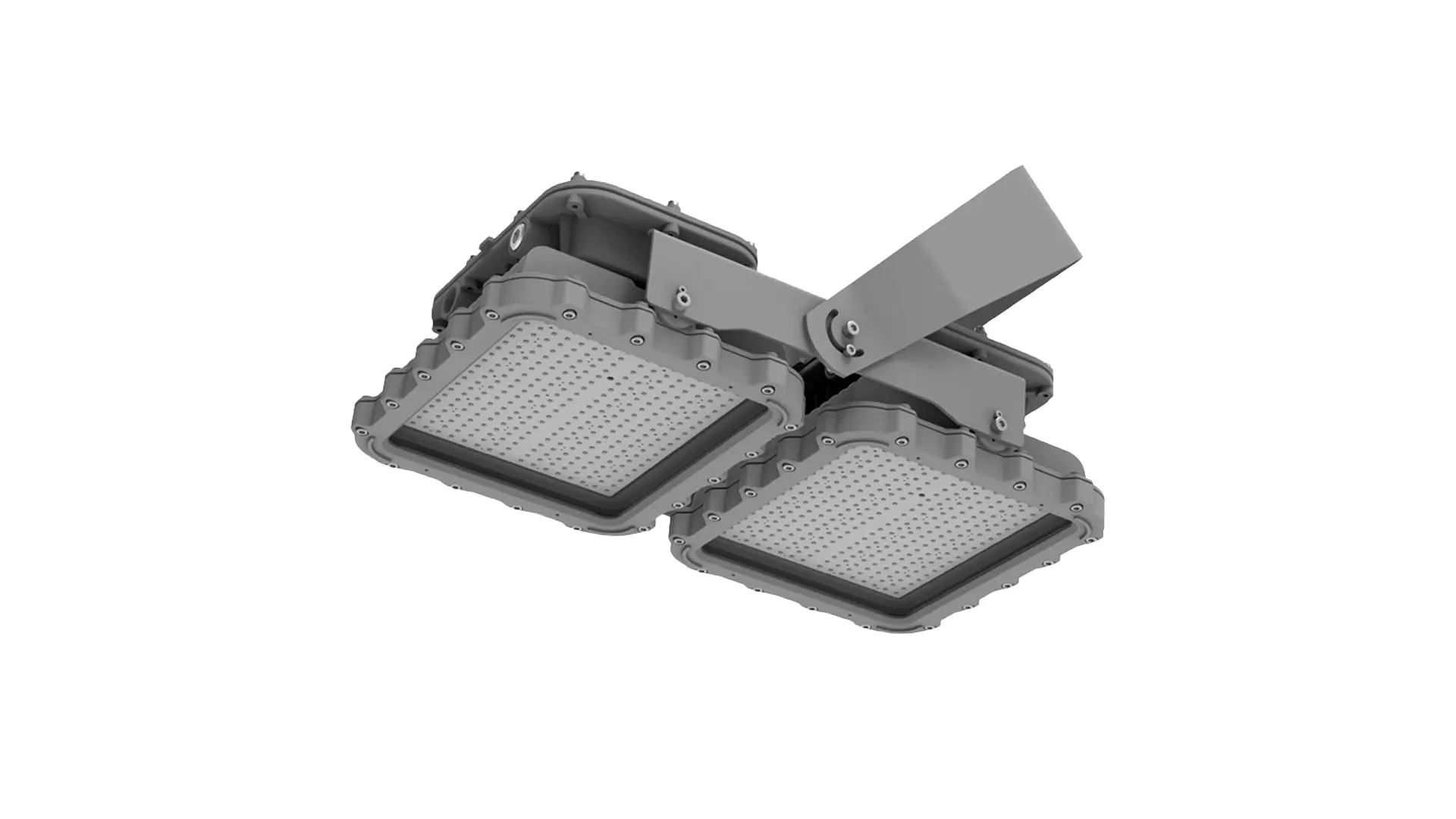

EHSL Duplex LED
E-Series explosion-proof combined-design LED flood lighting for hazardous-rated locations
Industry
Industrial | Marine | Oil Field | Wastewater Treatment
Type
LED
Luminaire
E-Series | Explosion Proof | Flood | Hazardous Location | Industrial
Classification
In a combined design, the EHSL Duplex LED explosion-proof flood light, part of the RIG-A-LITE E-Series, delivers up to 64,000 lumens from two high-output lights. Its durable aluminum housing, interchangeable optics, and energy-efficient design ensure economical performance reducing energy costs by up to 70% in hazardous-rated applications.
Standard Features:
- High Output: Wattage ranges from 300-400W, lumen output from 64,000lm
- High Efficacy: Provides up to 160lm/W, reducing energy costs by up to 70% over conventional lamps
- Multiple Optics: 30°, 60°, 90°, 110°, T2, T3, T4 lenses provide more choices for various scenarios
- Built to Last: Copper-free aluminum housing and impact-resistant lens provide ingress protection
- Durable U-Bracket: Vibration and corrosion-resistant u-shape rotates 360°, passes 5G 3-axis vibration test
Additional Features:
- Universal voltage: AC120-277, 347-480V (50/60Hz)
- High efficacy up to 160lm/W
- Optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
- CCT adjustable (3000K/4000K/5000K)
- 10kV surge protector is standard, 20kV optional
- Dimming: Standard 1-10VDC
- Ambient operating temperature -40°C to 60°C
- Lumen maintenance 150,000 @ L70
- 5-year warranty
Classifications:
- Class I, Division 2, Groups A, B, C, & D
- Class II, Division 1 & 2, Groups E, F & G
- Class III
- Class I, Zone 1, Group IIB
- Class I, Zone 2, Group IIC
- Zone 21, Zone 22
- UL 844 hazardous locations
- UL 1598 wet locations
- UL 1598A marine outside type
- UL 8750 LED safety
- CSA C22.2 No. 137-M1981
- CSA C22.2 No. 250.0-08
- IP67
- IK09
- NEMA 4X
- 3G
- Simultaneous presence
- Tested to 1000 hrs. salt spray to standard ASTM “B117-11”
Standard Materials:
- Body: Housing, heat sink, and adapter are die-cast aluminum with baked powder epoxy/polyester finish. Frame is combined with stainless steel
- Gaskets: High-temperature resistant silicone
- Lens: Heat, shock, and impact-resistant glass
- Hardware: Stainless steel with lacquer-free nameplate
